Paragon 2-piece Rotors Rear Pair 350mm x 20mm (13.78″ x 0.79″) – Tesla Model 3 RWD/AWD / Model Y AWD (Non-Performance) – Larger Rotor

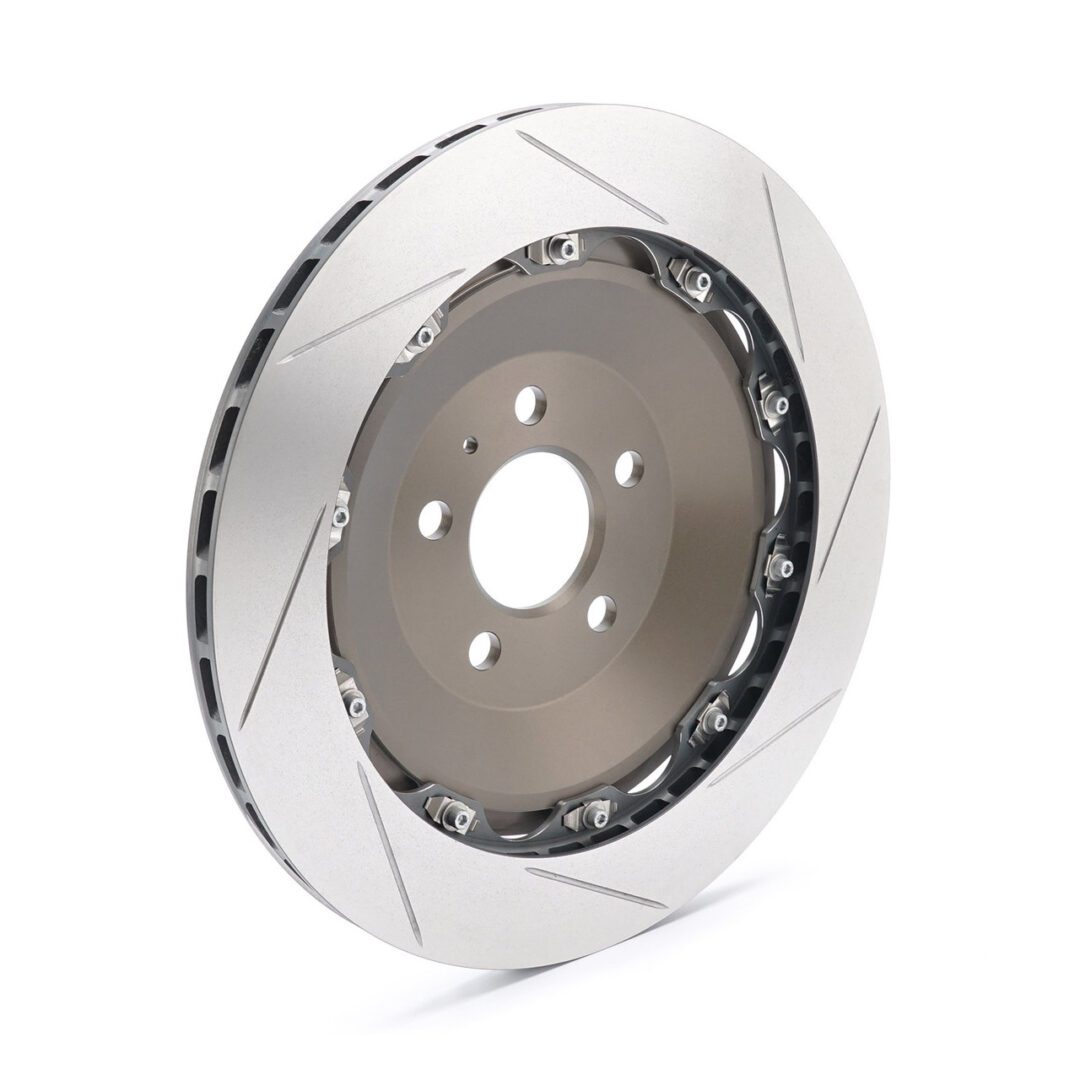

Paragon Performance 2-piece Rotor offers superior braking and cooling efficiency optimized for track and race applications. It features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads. Excellent thermal capacity is achieved by maintaining optimal mass in the rotor rings.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotors went through rigorous quality control procedures and inspections to ensure the rotors are fit for their purposes. The floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface.

Aluminum hats are CNC machined from lightweight 6061-T6 aerospace grade aluminum for high strength and durability under extreme conditions, then anodized to increase resistance to wear and corrosion. Mil-spec hard anodizing will not discolor under extreme heat, while black anodizing is more prone to discoloring under heat (> 392F / 200C). Hard anodized surface is harder, thicker, and more wear and scratch resistant. Hard anodized surface will last longer than black anodized surface, and is highly recommended for track / race applications.



• Designed to work flawlessly with OEM ABS and brake system. Compatible with OEM brake pads or aftermarket pads with the same pad depth (D)

• Directional ventilation vanes for optimal cooling performance, runs up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%

• Floating 2-piece design

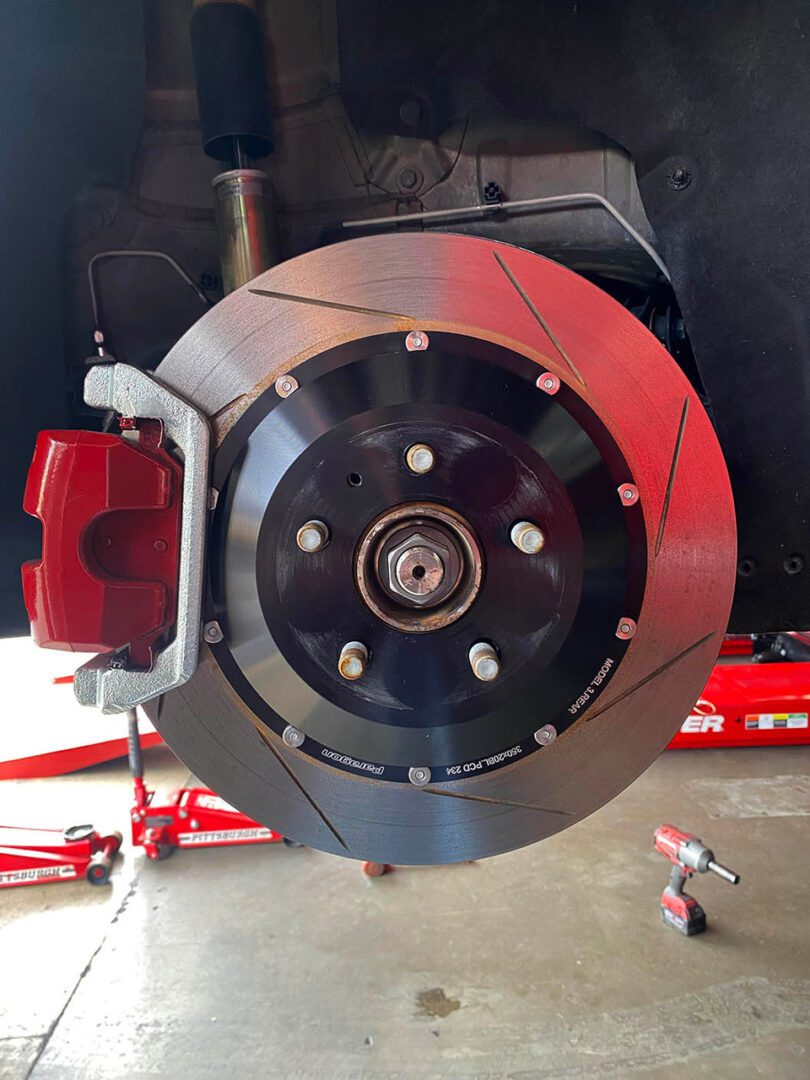

• Steel caliper carriers included to accommodate increased rotor size (350mm vs. stock size 335mm)

• Minimizing brake fade & judder during extended sessions

• Great upgrade from non-directional, pillar vane OEM rotors

• Rotor to hat mounting system: D-Bobbin (Long) – 10-bolt

• Requires 18″ or larger wheels

• Trimming or removal of the OEM dust shield required



Wheel Fitment

This larger rear rotor kit was designed to fit under certain 18 inch wheels. However, not all 18″ wheels are compatible due to variations in wheel design. If your wheels are not listed below, please verify fitment using the fitment template.

Wheel Fitment Template Download (please select the appropriate PDF with correct paper size): Letter size / A4



https://store-8pb2bpl705.mybigcommerce.com/content/Wheel%20Fitment%20Template/Wheel%20Fitment%20Template%20%28Letter%20Size%29%20-%20Tesla%20Model%203%20RWD%20AWD%20350x20mm%20Larger%20Rear%20Rotors.pdf



> How to use the wheel fitment template (PDF)



https://store-8pb2bpl705.mybigcommerce.com/content/big-brake-kit-wheel-fitment-guide.pdf



Fits:

– 2017+ Model 3 Rear-Wheel Drive and Long Range (Dual Motor, All-Wheel Drive)

***Does NOT fit AWD Performance or vehicles with Performance Upgrade Package “PUP” brakes

– 2020+ Model Y AWD



Direct replacement of OEM Tesla part #: 1044631-00-D



Includes:

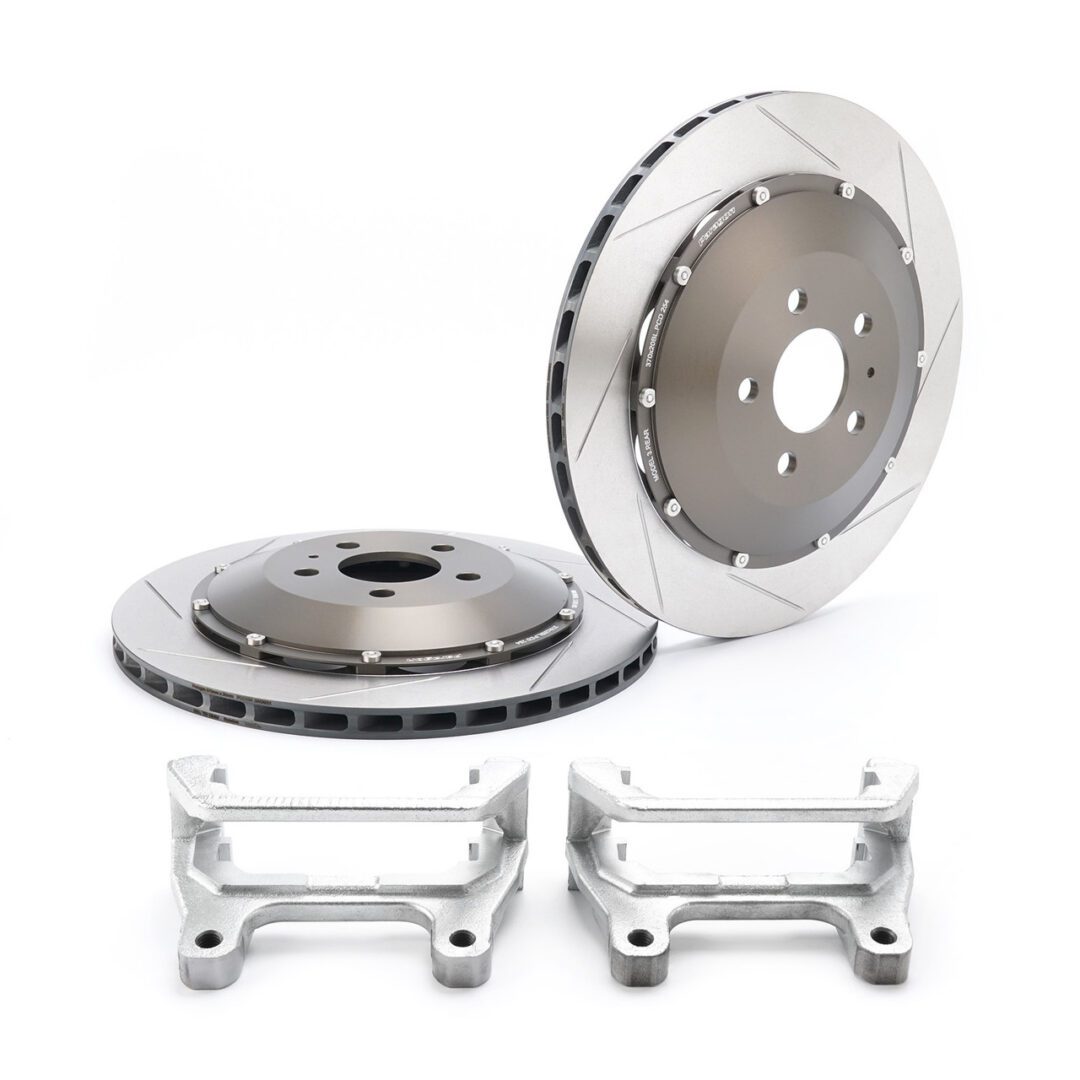

• One pair of Paragon Performance 350mm x 20mm (13.78” x 0.79”) 2-piece rotor assemblies with hard / black anodized 6061-T6 aerospace grade aluminum hats, stainless steel bobbins, and anti-rattle clips (assembled and ready to install)

• One pair of steel caliper carriers

• Detailed installation manual



Part # (w/ black anodized hat): P2R.048.350.200.23400.08.01.01.R

Part # (w/ hard anodized hat): P2R.048.350.200.23400.08.01.02.R
